3G Transmitters: A Comparison

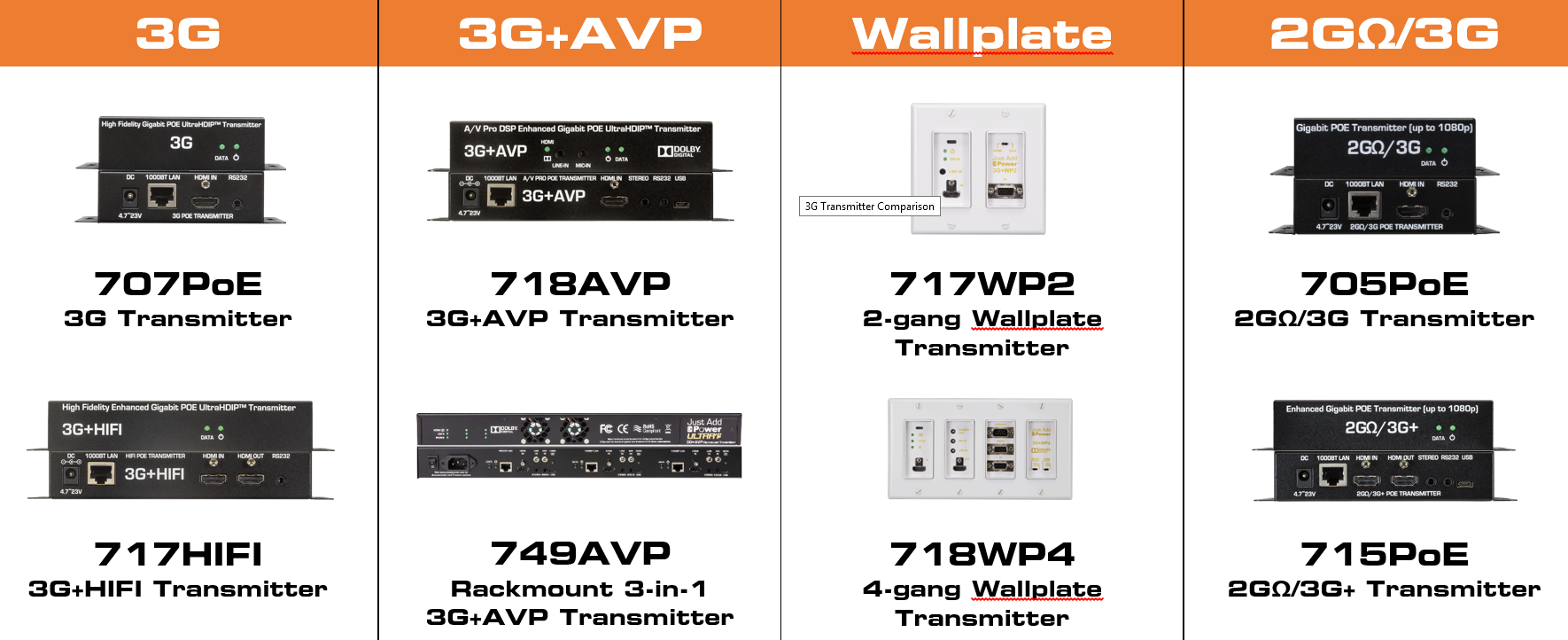

3G Transmitter Comparison

The Just Add Power 3G Ultra HDMI over IP system has three source-side devices - called Transmitters - that have different functionality. All models can be used in the same installation, so a decision must be made of which model serves best the video, audio, and Layer 3 needs of that source location.

VBS-HDIP-707POE

  • 4K video and HDCP 2.2
  • All lossless audio formats
  • Instant-seamless switching
  • RS232/CEC/IR* control
  • Image Pull
  • Power over Ethernet

VBS-HDIP-717HIFI

  • 4K video and HDCP 2.2
  • All lossless audio formats
  • Instant-seamless switching
  • HDMI pass-through
  • RS232/CEC/IR* control
  • Image Pull
  • Power over Ethernet

VBS-HDIP-718AVP & VBS-HDIP-749AVP

  • 4K video and HDCP 2.2
  • 5.1 Dolby Digital with transformation to Dolby PLII
  • Mic-In and Line-In mixable with HDMI audio
  • Stereo audio extraction with amp & delay**
  • Instant-seamless switching
  • USB 2.0
  • RS232/CEC/IR* control
  • Image Pull
  • Power over Ethernet

VBS-HDIP-717WP2

  • 4K video and HDCP 2.2
  • VGA and Line inputs
  • USB 2.0
  • CEC control
  • Power over Ethernet

VBS-HDIP-718WP4

  • 4K video and HDCP 2.2
  • VGA, Line and Mic inputs
  • USB 2.0
  • HDMI pass-through
  • Stereo audio extraction with amp & delay**
  • RS232/CEC/IR* control
  • Power over Ethernet

VBS-HDIP-705POE

  • 1080p video and HDCP 1.4
  • All lossless audio formats
  • Instant-seamless switching
  • RS232/CEC/IR* control
  • Image Pull
  • Power over Ethernet

VBS-HDIP-715POE

  • 1080p video and HDCP 1.4
  • All lossless audio formats
  • Instant-seamless switching
  • Stereo audio extraction with delay**
  • USB 2.0
  • Image Pull
  • RS232/CEC/IR* control
  • Power over Ethernet

VBS-HDIP-716VGA

  • 1080p video
  • VGA input
  • Line-In
  • USB 2.0
  • Instant-seamless switching
  • RS232 & IR* control
  • Image Pull
  • Power over Ethernet

VBS-HDIP-725POE

  • 1080p video
  • SDI input
  • HDMI pass-through
  • Stereo audio extraction with delay**
  • Instant-seamless switching
  • RS232 & IR* control
  • Image Pull
  • Power over Ethernet

U120C0E.170B

*IR control requires use of VBS-HDMI-IRD IR Dongle.
**Requires compatible HDMI signal
